VALVE DESIGN DATA
Size: 2"-20"
End connection: RF, RTJ, BW
Working temperature: -29℃～425℃
Operation: handwheel, gear box, electric, etc
Nominal pres sure: Class 150Lb-2500Lb PN1.6-16.0MPa
Material: WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,F304L,F316L
Design & Manufacture Std.: API 600 / BS1873、GB/T12335
Face to Face Std.: ANSI B16.34 、BS1873 、
Flange、Thread End Connection Std.: ASME B16.5、 ANSI B1.20.1
API 608 is intended to provide the similar additional requirements for steel and alloy steel ball valves beyond
ASME B16.34 as do the following API standards for other valve types:
API 594, Check Valves: Flanged, Lug, Wafer and Butt-welding
API Standard 599, Metal Plug Valves—Flanged, Threaded and Welding Ends
API Standard 600, Bolted Bonnet Steel Gate Valves for Petroleum and Natural Gas Industries
API Standard 602, Steel Gate, Globe and Check Valves for Sizes DN 100 and Smaller for the Petroleum and Natural Gas Industries
API 600: Bolted Bonnet Steel Gate Valve for Petroleum and Natural Gas Industries
BS 1414: Specification for Steel Wedge Gate Valves (Flanged and Butt-welding Ends) for the Petroleum, Petrochemical and Allied Industries
DIN3352: Bolted Bonnet Steel Gate Valve for Petroleum and Natural Gas Industries
ASME B16.47 Series A Large Diameter Steel Flanges: NPS 26 Through NPS 60 Metric/Inch Standard
MSS SP-25 Standard Marking System for Valves, Fittings, Flanges and Unions
ASME B16.20, Metallic Gaskets for Pipe Flanges—Ring-joint, Spiral-wound and Jacketed
ASME B16.25, Butt Welding Ends
ASME B31.3 Process Piping
API 6FA Fire Testing of Valves
API Std 598 Valve Inspection and Testing
Would you like to get more products information or order it, please call me

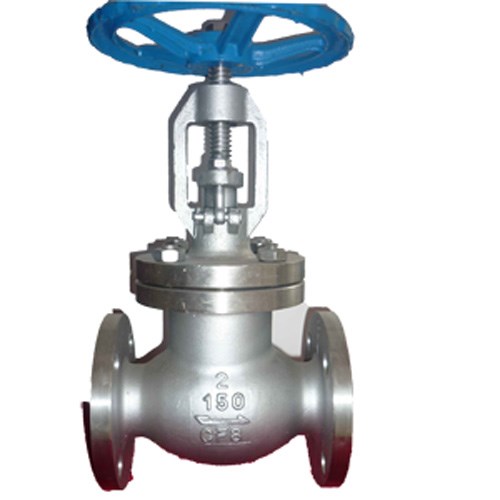

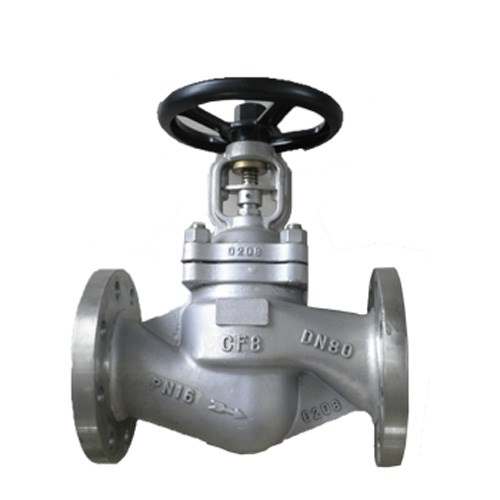

CLASS 150~1500 CAST STEEL GLOBE VALVE
|
Dimensions |
|||||||||||||
|
Class 150 |
|||||||||||||
|
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
|
L,L1-RF,BW |
mm |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
787 |
914 |
978 |
|
L2-RTJ |
mm |
216 |
229 |
254 |
305 |
368 |
419 |
508 |
635 |
711 |
800 |
927 |
991 |
|
H |
mm |
330 |
390 |
410 |
475 |
540 |
585 |
725 |
825 |
940 |
1200 |
1270 |
1300 |
|
K |
mm |
200 |
250 |
250 |
300 |
350 |
350 |
450 |
500 |
600 |
600 |
650 |
650 |
|
WT |
Kg |
23 |
29 |
40 |
59 |
95 |
115 |
178 |
268 |
385 |
540 |
760 |
1050 |
|
Dimensions |
||||||||||||
|
Class 300 |
||||||||||||
|
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
|
L,L1-RF,BW |
mm |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
838 |
863 |
|
L2-RTJ |
mm |
283 |
308 |
333 |
371 |
416 |
460 |
575 |
638 |
727 |
854 |
879 |
|
H |
mm |
350 |
425 |
485 |
520 |
565 |
655 |
825 |
920 |
1155 |
1250 |
1295 |
|
K |
mm |
200 |
250 |
300 |
300 |
350 |
350 |
500 |
600 |
700 |
700 |
450 |
|
WT |
Kg |
30 |
45 |
60 |
83 |
135 |
162 |
265 |
375 |
525 |
765 |
1100 |
|
Dimensions |
|||||||||
|
Class 600 |
|||||||||
|
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
|
L,L1-RF,BW |
mm |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
|
L2-RTJ |
mm |
295 |
333 |
359 |
435 |
511 |
562 |
664 |
791 |
|
H |
mm |
420 |
490 |
550 |
590 |
620 |
700 |
950 |
1140 |
|
K |
mm |
250 |
300 |
300 |
350 |
500 |
500 |
600 |
600 |
|
WT |
Kg |
39 |
61 |
76 |
122 |
210 |
245 |
447 |
692 |
|
Dimensions |
||||||||
|
Class 900 |
||||||||
|
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
|
L,L1-RF,BW |
mm |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
|
L2-RTJ |
mm |
371 |
422 |
384 |
460 |
562 |
613 |
740 |
|
H |
mm |
495 |
540 |
600 |
655 |
670 |
780 |
1050 |
|
K |
mm |
300 |
350 |
350 |
500 |
500 |
350 |
350 |
|
WT |
Kg |
96 |
79 |
117 |
178 |
305 |
355 |
730 |
|
Dimensions |
||||||
|
Class 1500 |
||||||
|
Size |
inch |
2 |
2-1/2 |
3 |
4 |
6 |
|
L,L1-RF,BW |
mm |
368 |
419 |
470 |
546 |
705 |
|
L2-RTJ |
mm |
371 |
422 |
473 |
549 |
711 |
|
H |
mm |
550 |
580 |
625 |
750 |
925 |
|
K |
mm |
300 |
350 |
400 |
450 |
600 |
|
WT |
Kg |
116 |
125 |
145 |
210 |
475 |
