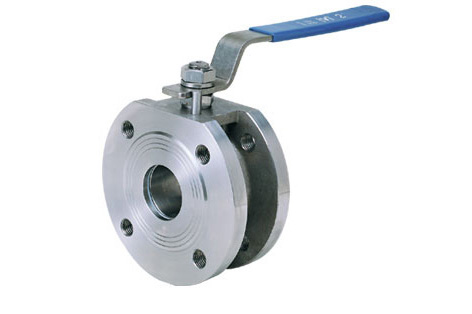

Q71F connected to the clamp ball valve has a compact structure, small volume, light weight, good seal performance, flexible and thermal insulation for opening and closing connections to the clamp ball valve good heat/cold characteristic can effectively prevent the slabby medium solidification, and can reduce the heat loss of the medium in pipeline. Ball valve can be installed to the clamp corresponding electric and pneumatic device, in order to realize the remote control or automatic control. Apply to oil, chemical, metallurgical, pharmaceutical, food and other kinds of systems. Nominal pressure application specification: 1.6-2.5 MPa applicable temperature range: - 20 ~ 232 ℃ to 350 ℃ applicable medium: water, oil, gas, etc.

Diameter range: DN15 ~ DN200.

Pressure range: PN1.0 - PN2.5 150 lb.

Temperature range: - 20 ℃ 250 ℃ material.

Driving mode: manual, pneumatic, electric.

The valve body material: cast steel, stainless steel.

Connection mode: the clip.

Material:
