Feature:

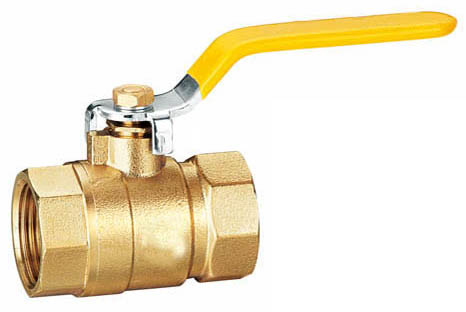

1. The copper ball valve has a small fluid resistance, little flow resistance full size of ball valve.

2. Simple structure, small volume, light weight.

3. Compact and reliable. It has two sealing surface, and the widespread use of all kinds of fluorine plastic ball valve sealing surface of materials, good sealing, can realize completely sealed. Have been widely used in the vacuum system.

4. Easy to operate, open and close quickly, from open to close just rotate 90 °, is advantageous for the remote control.

5. Easy maintenance, ball valve has simple structure, sealing ring, which generally remove replacement is more convenient.

6. In the fully open or fully closed, the ball and seat sealing surface and the dielectric isolation, medium through, can not cause the valve sealing surface erosion.

7. Because the ball valve have to wipe in the process of opening and closing, so can be used to bring in the medium of suspended solid particles

Product parameters:

1, nominal pressure, or pressure, PN1.0-32.0 MPa, ANSI CLASS 150-900, JIS10-20 k;

2, nominal diameter, or caliber: DN6 ~ 900, NPS 1/4 ~ 36;

3, connection mode: flange, butt welding, thread, socket welding, etc.;

4, suitable temperature: 196 ℃ ~ 540 ℃;

5, drive mode: manual, worm gear and worm drive, pneumatic, electric, hydraulic, pneumatic hydraulic linkage, electro-hydraulic linkage;

6, the valve body material: WCB, ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8 (304), CF3 (304 l), CF8M (316), CF3M, Ti (316 l). choose

With different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.
