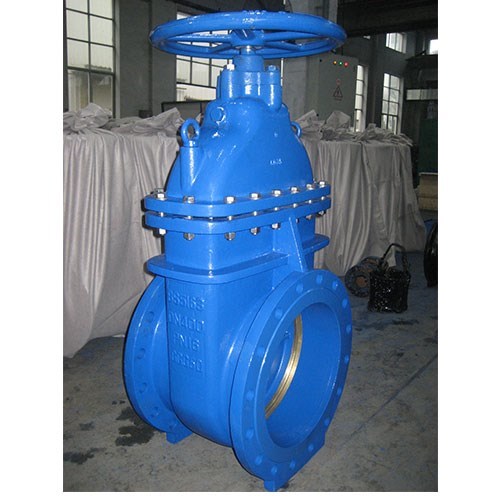

BS 5163 Cast iron Gate Valve

Sizes Range:

DN 50~400mm,

Design Feature:

Bolted Bonnet
Rising stem or Non-rising stem;
Soft seat or Metal seat;
ISO top flange for any type of actuator or bevel gear.
Flange end or Butt-weld end

Body material Options:

GG25, GGG40, GGG50

Seat material Options:

EPDM, NBR, Brass, Bronze

Pressure rating:

PN 10 or PN16

Applicable Standards:
Design: BS5163
Face to Face: BS5163

Flange: BS4504

Operation Options:

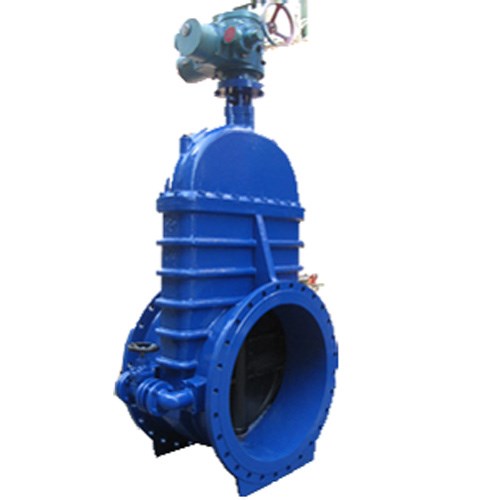

Handwheel/Bevel Gear/ Pneumatic/Electric actuator
