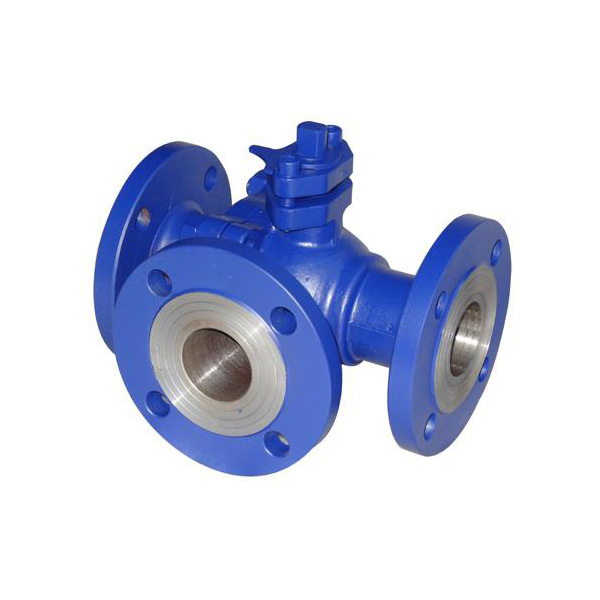

L Type Three Way Floating Ball Valve(GQ44F)

Description

Please call:

+86-577-67356570

Contact Now

Remark

L Shaped Three way ball valve product feature.
1.Three or two seat sealing ball valve enjoys compact structure,beautiful appearance, good sealing performance.
It can realize the switch the flow in pipe, also can make the two channels are perpendicular to each other
connection or close.
2. Switch the four seat sealing three ball valve can not only realize the flow, also can make the Three channels are
connected to each other, but also to turn off any channel, connected to the other two channels,flexibility control

line in medium mixing or shunt.

L Shaped Three way ball valve Parameter Details.

Port Size : 2"--12"
Pressure : 150LB--1500LB
Temperature of Media : High Temperature
Media : gas oil and water ect.
Drive means : Manual , pneumatic , electric
Type of connection : Flange , thread , butt welded
Material : SS, CS
Packaging & Delivery : Plywood case or buyer request

L Shaped Three way ball valve technology parameter.

Form	Type T,L three way ball valve
Inside nominal diameter DN(mm)	DN15-DN300
Nominal pressure	1.6 2.5 4.0 6.4Mpa
Liquid range	Air ,water, gas ,oil and petrochemical products corrosive medium
Working temperature	Hard seal:-40 --300 Soft seal:-40 --180
Spillage	0 conform to ANSIB16.104standard
Main material	Valve body : WCB 304 316 316L Spool: 304 316 316L
Seat form	Stainless steel movable hard seal, PTFE soft seal
Surface preparation	Polishing

Description

Please call:

Related Products

API Forging Steel Trunnion Mounted Ball Valve

Butt Welding High Pressure Ball Valve

Socket Welding High Pressure Ball Valve

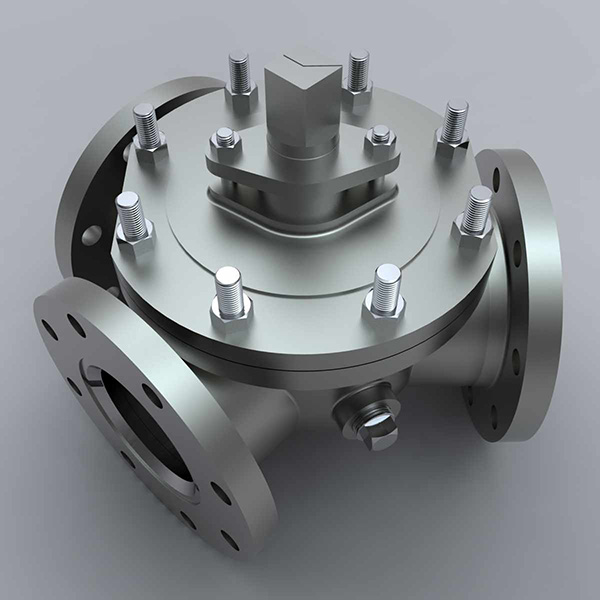

Y Shaped Three Way Diverting Ball Valve(GQ42Y)
