Description

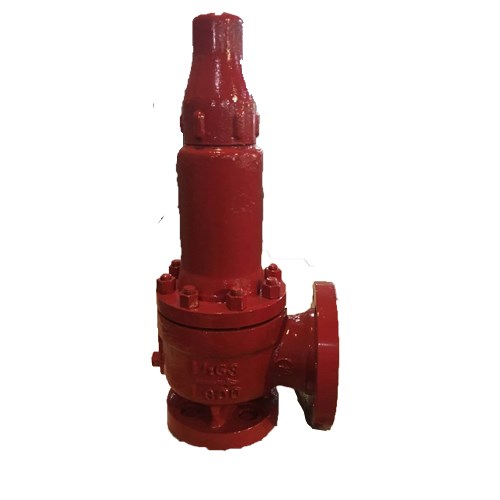

The safety valve is an automatic discharging pressure unit for pressured equipment, containers or pipe roads. When the protected pressure rises over the permitted value the valve will automatically start to discharge superfluity medium and prevent the system pressure keeping on rising. When the system pressure reduces to a regulated value, the valve will be able to automatically shut and make sure the system in general operation. How to choose the safety valve correctly will be concerned to the users economic benefit and the safe for operators and equipment.
ThIS types are used for the equipment and pipeline of the petroleum gas, air,water, etc.medium what the working temperature are less than 300℃.

Please call:

+86-577-67356570

Remark
VALVE DESIGN DATA

Size: 1/2"-20"
Nominal pres sure:
Class 150Lb-600Lb PN1.6-4.0MPa
Material:  WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,F304L,F316L
Design & Manufacture Std.:   ASME Ⅷ、API520、API526  GB/T12243
Face to Face Std.: ASME Ⅷ、API520、API526
End Connection Std.: ANSI B 16.5
Test Standard:  ASME Ⅷ、API520、API526
API RP 520 Sizing Selection and Installation of Pressure - Relieving Devices in
Refineries
API RP 521 Guide for Pressure-Relieving and Depressurizing System
API Std 526 Flanged Steel Safety - Relief Valves
API Std 527 Seat Tightness of Pressure Relief Valve
ANSI/ASME B16.5 Pipe Flanges and Flanged Fittings
ASME B31.3 Process Piping
API 6D Specification for Pipeline Valves (Gate, Plug, Ball and Check Valves)
API 6FA Fire Testing of Valves
API Std 598 Valve Inspection and Testing
ANSI/ASME B31.4 Pipeline Transportation System for Liquid Hydrocarbons and Other Liquids
