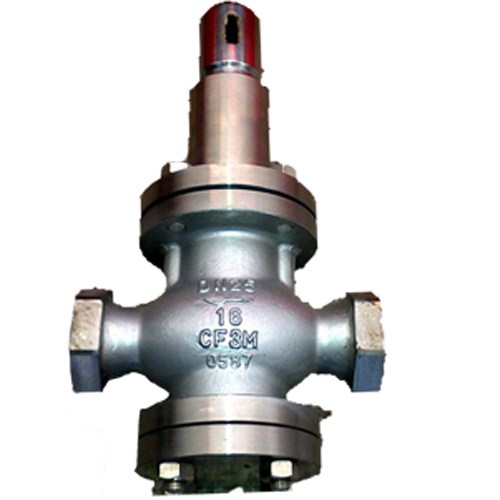

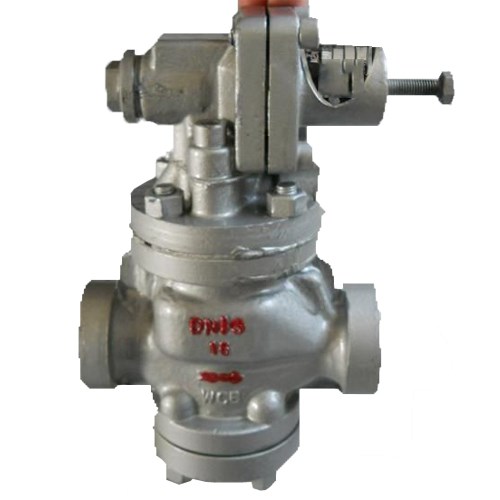

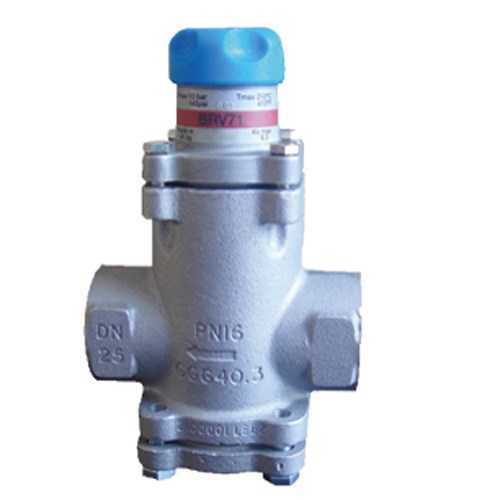

This reducing valve the new type pilot extra-huge membrane pressure reducing valve developed by our company. It is greatly improved on basis of normal pressure reducing valve. The membrane use new material, enlarging the working area, so the slight change of upper pressure or lower pressure can be fed back to membrane of main valve, and adjust the opening of main valve to ensure the constant pressure of lower stream pressure..

VALVE DESIGN DATA

Size: 1/2"-2"

Nominal pres sure:  Class 150Lb-600Lb PN1.6-4.0MPa
Material:  WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,F304L,F316L
Design & Manufacture Std.:   ASME Ⅷ、GB/T12244、 GB/T12245、 GB/T12246
Face to Face Std.: ANSI B16.34
Thread End Connection Std.:ANSI B1.20.1
ASTM F 1795-2000 Standard Specification for Pressure-Reducing Valves for Air or Nitrogen Systems)
ASTM F 1565-2000 tandard Specification for Pressure-Reducing Valves for Steam Service
ASTM F 1508-1996 Standard Specification for Angle Style, Pressure Relief Valves for Steam, Gas and Liquid Service
BS EN 1567-2000 Building valves - Water pressure reducing valves and combination water reducing valves - Requirements and tests
Test Standard:  API598
ANSI/ASME B16.5 Pipe Flanges and Flanged Fittings
ASME B31.3  Process Piping
API 6FA  Fire Testing of Valves
API Std 598  Valve Inspection and Testing
ANSI/ASME B31.4 Pipeline Transportation System for Liquid Hydrocarbons and Other Liquids

Would you like to get more products information or order it, please call me
